Description

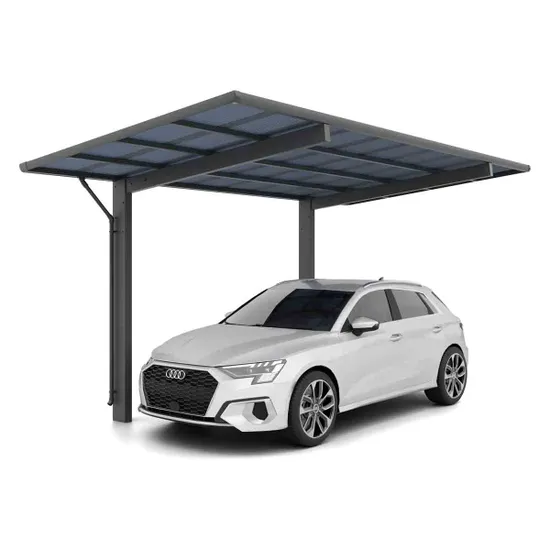

Discover the Ximax 17’x9′ Metal Carport Wing – Anthracite, a sophisticated addition to any setting.
This single-carport structure features a sleek, wave-style roof that effortlessly complements its surroundings.
Constructed with a corrosion-resistant aluminum frame and robust polycarbonate roofing, it combines elegance with durability. The integrated gutter system ensures efficient drainage, while the polycarbonate roof offers heat-repellent, hail-resistant, and frost-proof protection, blocking 100% UV and 50% infrared rays. Experience unparalleled safety, superior craftsmanship, and enduring performance with this versatile carport solution.
The design carport from the Wing series fits harmoniously into any environment as a single carport with a straight roof in a wave look. The carport is corrosion-resistant and offers almost unlimited application possibilities thanks to its slim, single-sided support structure.
A gutter with downpipe is already integrated in the rear longitudinal profile. Despite its high level of functionality and attractive design, the high-quality material of the aluminium carport is finished to perfection. Elegant, timeless and incredibly flexible and stable thanks to the combination of anodised aluminium for the structure and almost indestructible polycarbonate as the roof covering! The roof is heat-repellent and both hail-resistant and frost-proof.
The highly impact-resistant polycarbonate is slightly transparent smoked glass grey and offers protection against 100% UV radiation and 81% infrared radiation. This carport kit offers maximum security and is characterised by high-quality workmanship and durability.
Features:
Powder-coated aluminium carport

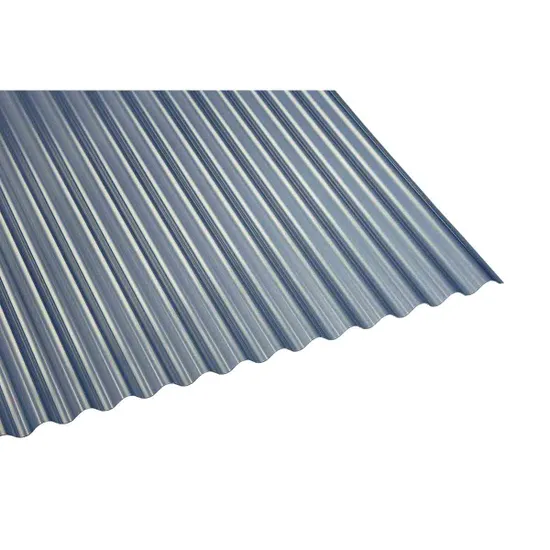

Corrugated polycarbonate sheets (hail-proof, highly impact-resistant)
Gutter integrated in the rear longitudinal profile incl. rainwater downpipe
Corrosion-resistant, hail-proof, frost-proof
Requires Assembly
SHEDMASTER DOES NOT FEATURE THIS ITEM AS A STANDALONE ITEM AND INSTALLATION MUST BE PURCHASED (DUE TO THE NATURE OF THE ITEM)
Specifications:
| Type/Colour |
Length (mm) |
Width (mm) |
Height (mm) |
Clearance Dimensions
(mm) |
No. Posts |
Snow Load
(kg/m2) |
Wind Load
(km/h) |
| Min. |
Max. |
| Wing |
|
|
|
|
|
|
|
|
| Anthracite |
5314 |
2757 |
2835 |
2340 |
2600 |
2 |
100 |
122 |
| Silver |
5314 |
2757 |
2835 |
2340 |
2600 |
2 |
100 |
122 |
External width: 5314mm
External height: 2835mm
External depth: 2757mm
Weight: 103kg
Fittings & fixings included
Roof surface: 14,65m²
Roof pitch: 17°
Roof type: Flat
Snow load: 100kg/m²
Maximum number of cars: 1
Entrance height: max: 260cm / min: 234cm
Base Options for Ximax Carports

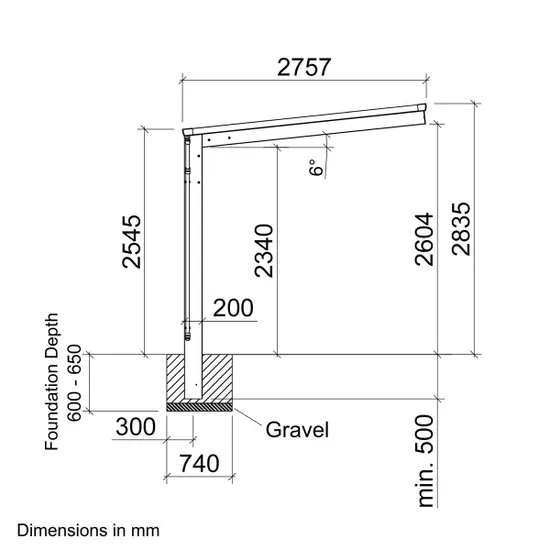

All Carports are advised to be Installed on a hard standing surface base area. The carports are likely to be built with posts which are sunk and set into the ground.
It is recommend that the carport should be anchored to a flat and level concrete surface. Tarmac or other surfaces is not advised. The carport needs to be anchored well and should be on cement footings.
A poorly installed carport can lean, leak, shift in wind, fail prematurely, or even collapse. We always advise a customer that a professional installer should install the carport.
Should you have any questions on its suitability please contact us before ordering!
About Ximax
Ximax have been manufacturing and trading company (founded 1992) in the field of heating/sanitary with headquarter in Austria and branches as well as logistic centres in Germany and UK.
With a strong emphasis on the fields designer radiators, bathroom radiators, space heater and towel radiator accessories as well as designer carports and garden sheds they are a reliable and innovative partner.
Continuous development of new products, solutions, services and additional services in the interest of our customers and our business development is one of our strengths. The in-house production ensures exceptional rapid product development and production cycles for maximum customer satisfaction.
