Description

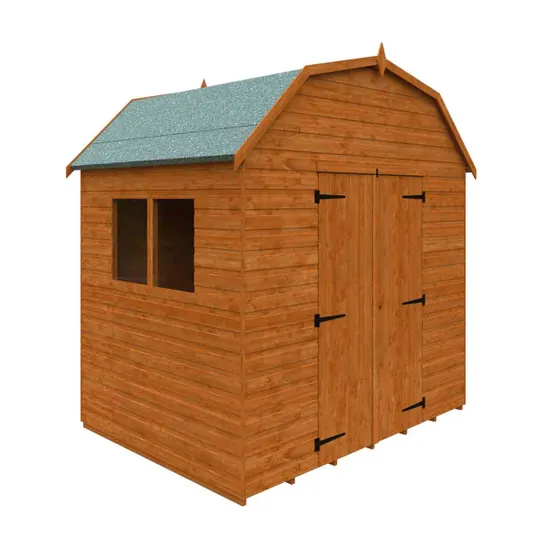

The Pro-Tect Timber 6’x8′ Shiplap Barn Style Shed (Window or Windowless) is an unique building with an attractive and robust ‘Dutch-Barn’ style four-piece roof.

Based on a Workshop height apex shed with double doors the Barn provides huge internal storage space, especially in the eaves.

This spacious shed, featuring double doors, offers ample storage, especially in the eaves.

The Pro-Tect Timber Shiplap Barn Style Shed  comes with superior grade tongue and groove shiplap cladding providing increased rigidity and security. This 12mm finish shiplap cladding comprises of a high quality selected European softwoods, protected with a  water based treatment. The roof of the Pro-Tect Timber Shiplap Barn Style Shed is covered by a layer of heavy duty grey mineral felt for additional protection. This product incorporates a high security lock and key system, supplied free as standard.

You must ensure that this garden building is assembled strictly in accordance with the assembly instructions that are provided and is installed on a firm and level base constructed from a suitably durable material. The garden building should be treated shortly after assembly, both externally and internally, with a good quality wood preserver and treated with a water-resistant treatment. Treatment should be reapplied annually to prolong the life of your building. All glazing units must be sealed, inside and out with silicone or other watertight solution of your choice (not supplied). Images and photos of products are provided for illustrative purposes only. Please note that product colours can vary slightly due to the digital photography process and variations in individual user monitor settings.

The shed comes with a 10 Year Limited Manufacturer’s Guarantee as standard.

Features

12mm Shiplap Tongue & Groove Cladding
Grey Mineral Felt
12mm Tongue & Groove Roof and Floor Boards – NO OSB
Lock and Key
Double Full Boarded Tongue & Groove Doors
Toughened Glazed Fixed Windows

Specifications

Cladding Material Shiplap
Cladding Thickness 12mm
Framing Style Standard
Framing Size 28mm x 44mm
Roof Material Tongue & Groove Board
Roof Thickness 12mm
Floor Material Tongue & Groove Board
Floor Thickness 12mm
Door Style Double Fully Boarded Tongue & Groove Doors
Door Size 1132mm x 1800mm
Window Style All Fixed
Window Size 457mm x 610mm
Glazing Thickness 3mm
Glazing Material Toughened Glass
Roof Covering Grey Mineral Felt Treatment
Locking System Lock and Key Material Selected European Softwoods
Length 1750mm
Width 2350mm
Base Size 1750mm x 2350mm
Internal Size 1662mm x 2262mm
External Ridge 2613mm
External Eaves 1985mm
Internal Ridge 2501mm
Internal Eaves 1929mm
Ext. Size (excl. Roof) 1774mm x 2374mm
Ext. Size (inc. Roof) 1874mm x 2534mm
No. of Windows 2
Weight 232 Kg

Dimensions: H:261.3 x W:235.0 x D:175.0 cm

Shed Base Preparation

You must ensure that this garden building is assembled strictly in accordance with the assembly instructions that are provided and is installed on a firm and level base constructed from a suitably durable material.  Suitable bases include a pre-existing concrete base or slabbed paving for the shed to be anchored upon. The garden building should be treated shortly after assembly, both externally and internally, with a good quality wood preserver and treated with a water-resistant treatment. Treatment should be reapplied annually to prolong the life of your building. All glazing units must be sealed, inside and out with silicone or other watertight solution of your choice (not supplied). Images and photos of products are provided for illustrative purposes only. Please note that product colours can vary slightly due to the digital photography process and variations in individual user monitor settings.

You will need a firm and level base for the shed to go on. The shed comes with a T&G floor with floor joists on the underside to lift the building off the ground, but you will still need something firm and level for it to go on. This can be concrete, paving slabs, timber bearers or any other suitable firm and level base. If you have any questions on bases then please get in touch. Some silicone around the windows on the outside would also be beneficial.

THIS SHED IS SUPPLIED WITH A FLOOR ONLY! This is NOT an ALTERNATIVE TO A BASE. This shed will require a suitable pre-existing base such as concrete or slabbed paving for it to be anchored down too. Suitable bases include slabbed paving / concrete slabs for the shed to be anchored down too!
